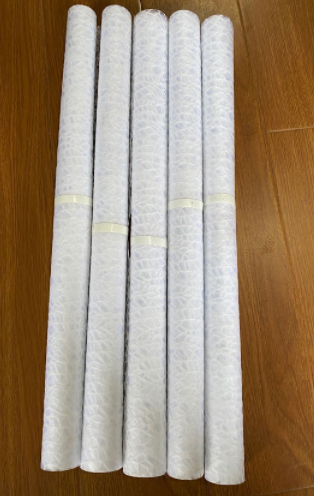

Nonwoven wallpaper rewinder is a multi-function model, it can rewind nonwoven fabric roll, wallpaper roll, book cover, PE coated paper, gift paper etc. The machine
uses servo motor control, touch screen data setting, automatic meter counting, automatic cutting of the finished product, very simple to operate.
As an option, the machine can do both coreless and with two types of paper core.

Features:
1. The machine works with emergency stop switch, automatic stop and automatic tension adjustment
2. Automatic loading of unwinding roll
3. Pneumatic cutting system

Main Data：

Name:Nonwoven Wallpaper Rewinder

Model:PPD-NWPR1000

Rewinding roll width:max1000mm

Maximum unwinding roll diameter: 800mm

Maximum rewinding roll diameter: 280mm

Unwinding air shaft size:76mm

Rewinding sir shaft size:38mm

Production speed:180-200m/min

Voltage:220/380V option

NOTE:Different sizes can be customized.
