Thermal Paper Roll Slitter RewinderWelcome to PPD Film Rewinder Machinery

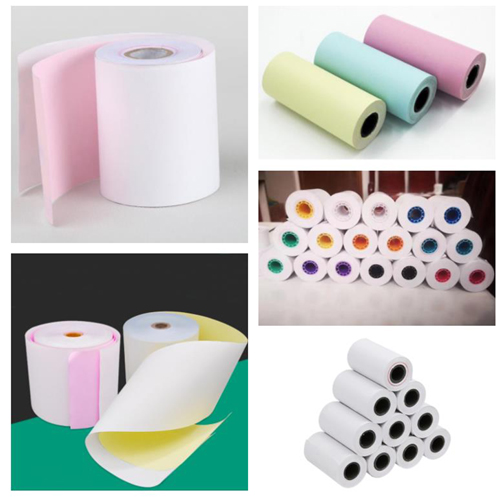

2 ply NCR paper slitter is ideal for slit of 2 layer function for making thermal paper, NCR paper, fax paper, cash register paper, POS paper, computer bill, medical record paper, ATM receipt, Lottery and so on.
2 ply NCR paper adopted the surface rewinding method, automatically fold, insert reel. The electrical part adopts the most advanced PLC controller. All programs are set by touch screen. Unwinding is used in automatic loading system, the tension force is controlled by PLC.

Features:
1.Automatic tension control system for unwinding tension.
2.Automatic meter counting.
3. It uses frequency inverter for main inverter motor driving, the speed can be adjusted.
4. All transmission rollers are treated with dynamic/static balance.
5. Equipped with an emergency switch.

Main Data:

Name:2 Ply NCR Paper Slitter

Model:PPD-2PLY900

Unwinding roll width: max900mm

Unwinding roll diameter:max1000mm

Slit roll width:Min20mm

Slit roll inner diameter:12.7/15/18mm option

Slit roll outer diameter:max180mm

Design speed:max150m/min

Voltage:380V,50hz

Machine dimensions:1850*1750*1600mm

Machine weight:1800Kgs
