Protective Plastic Masking Film Lamination Rewinder

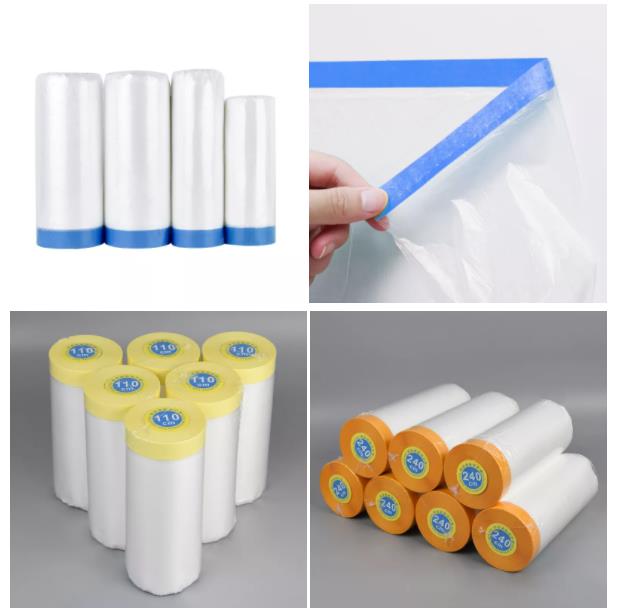

The protective plastic masking film lamination rewinder is suitable for the production of PE, HDPE pre-taped masking film which is widely used for protecting areas that do not need painting. It is widely used in large machinery, ships, cars, containers. ,painting, painting trademarks, logo protection.


Features:
1. This machine uses frequency conversion speed regulation and full integrated circuit control.
2.Complete function, good repeatability and stable speed.
3. Automatically controls the tension of rewinding and unwinding.
4.Two-stage electronic length counting, accurate length calculation.

Technical Data:

Name:Protective Plastic Masking Film Lamination Rewinder

Model:PPD-PPMFR150

Unwinding roll width:max150mm

Unwinding roll ID:76mm

Unwiding roll OD:max700mm

Rewinding roll width:max150mm

Rewinding roll ID:25-50mm option

Speed:max300m/min

Voltage:220/380/415V option
