Thermal Paper Roll Slitter RewinderWelcome to PPD Film Rewinder Machinery

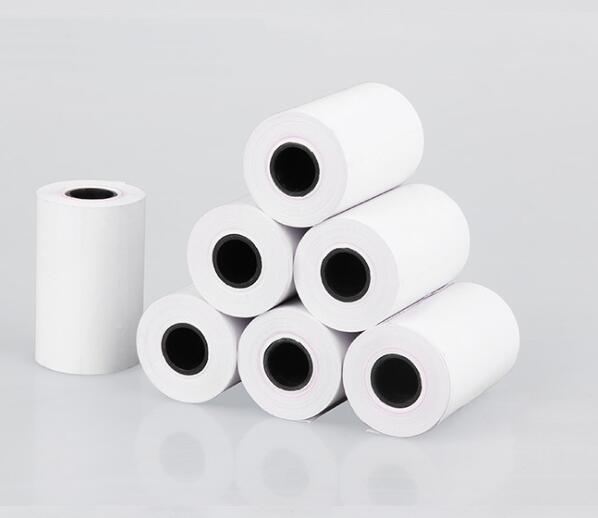

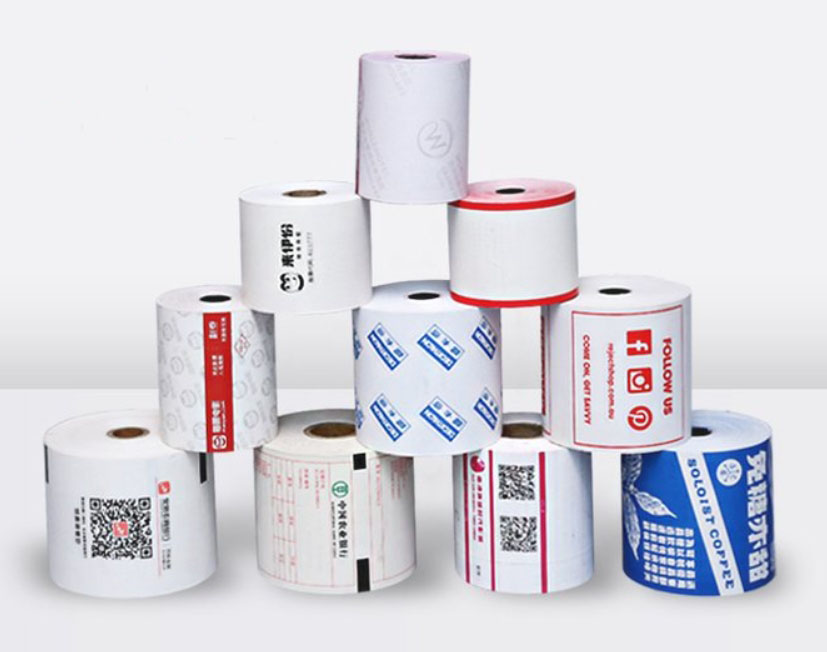

Automatic 1400mm width thermal paper slitting cutting machine is mainly suitable for slitting all kinds of fax paper,cash register paper,computer bill,medical record paper,POS printing paper,POS printing paper,ATM reel paper self adhesive paper etc



Features:
1.It is adopt the surface rewinding way, automatic replicate, insert reel.
2.The electric part adopt the most advanced PLC controller.
3.Unwinding is used to automatic loading system, the tension force is controlled by PLC,simple in operation

Main Data:

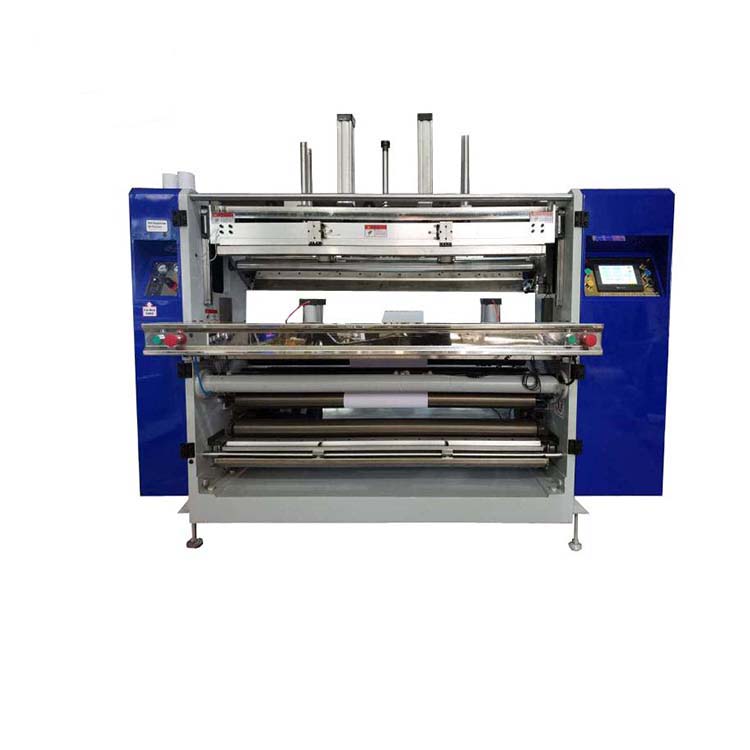

Name:Automatic1400mm Width Thermal Paper Slitting Cutting Machine

Model:PPD-1400

Unwind roll width:max1400mm

Unwind roll outer diameter:max1000mm

Unwind roll paper core inner diameter:76mm(3inch air shaft)

Standard slitting width:57,  80mm or as customized size

Proudct roll inner diameter:12.7mm or as customized size

Product roll outer diameter:max160mm

Cutting speed:168 m/min

Total power:4.5kw

Voltage:380V 50Hz
