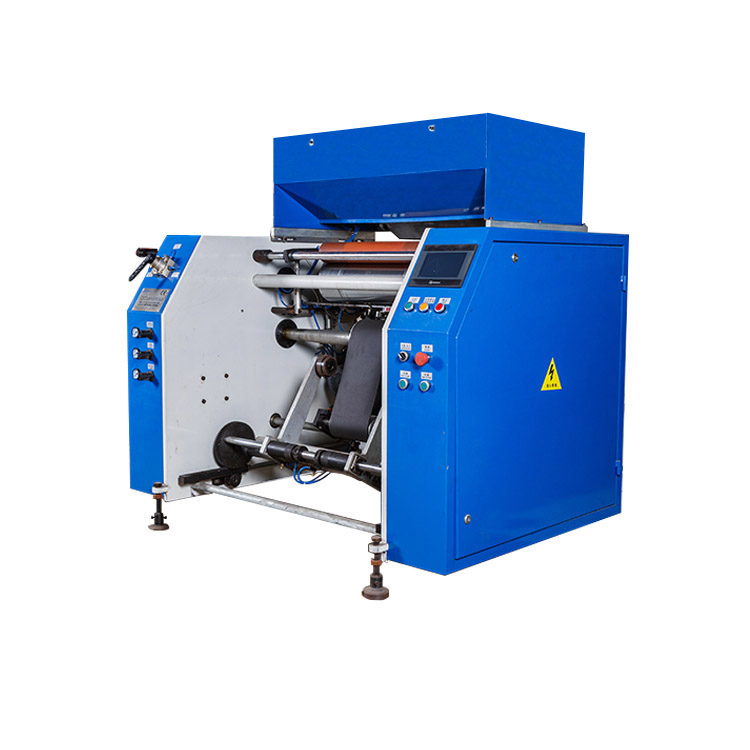

5 Shaft Automatic Curly Edge Cling Film Roll Rewinding Machine

PPD-5CECFR300
5 shaft automatic curly edge cling film roll rewinding machine is customized model for rewinding of PE cling film rolls,PVC cling film rolls,hand rolls,stretch film rolls,machine rolls,industrial rolls with curly edge.
It works with 5 shaft high effcient rewinding,auto exchange the shaft,auto paper core loading,auto product deliver the final product.

Features:
1. Five-shaft cyclic rewinding, high efficient.
2. PLC + touch screen + frequency converter control system, easy to operate.
3. Machine will be an alarm if there is no paper core in the paper core hopper, and the machine will stop automatically if there is no paper core in the chuck, which is very user-friendly.

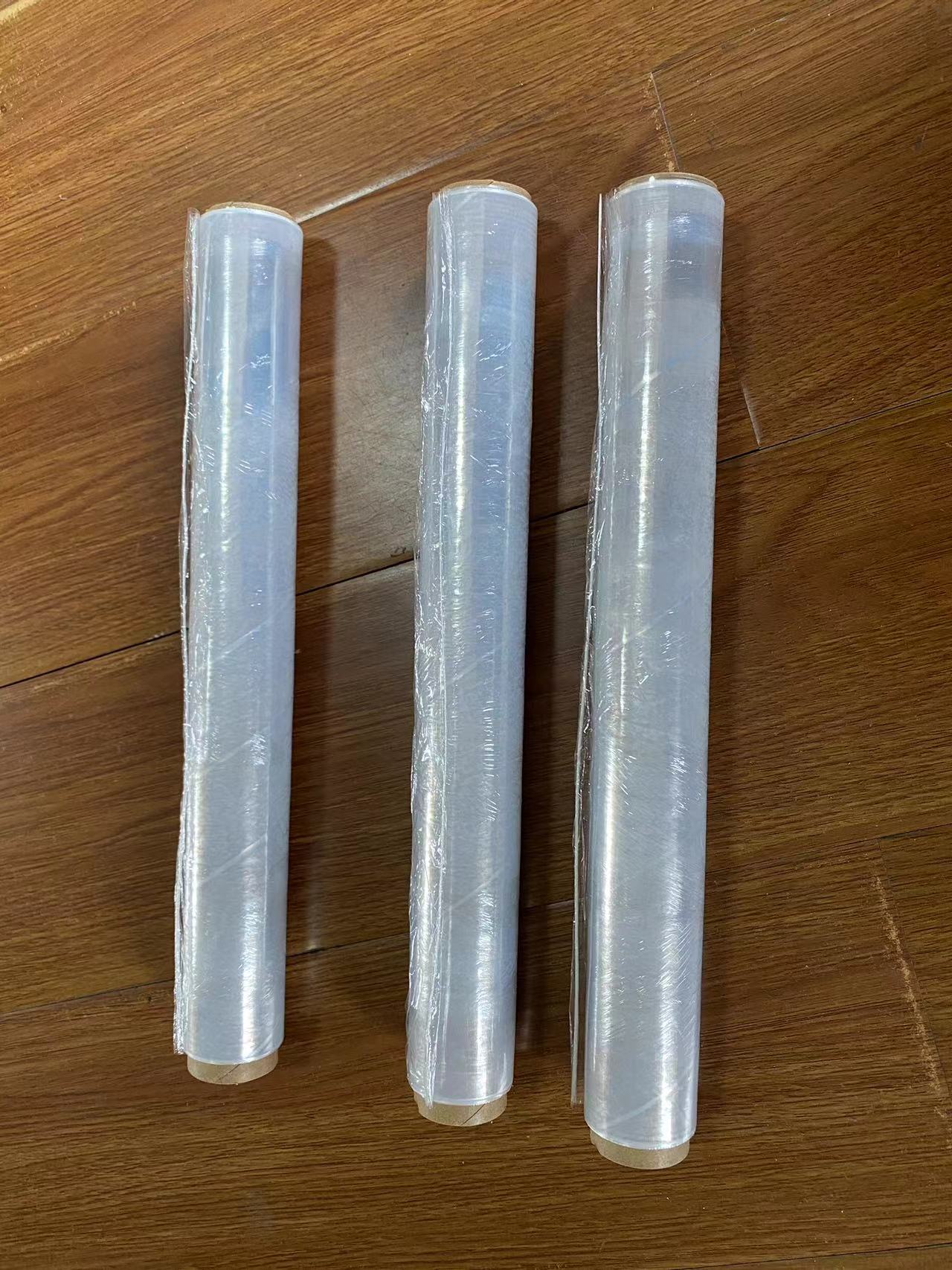

4.The final product roll is with curly edge for easy peeling.

Main Data:

Name:5 Shaft Automatic Curly Edge Cling Film Roll Rewinding Machine

Model:PPD-5CECFR300

Material:PE, LL clear food wrap,PVC cling film

Jumbo roll width:300mm

Jumbo roll OD:max400mm

Jumbo roll ID:76mm

Rewind roll width:max300mm

Rewind roll ID:30/35/38/40mm option

Rewind roll length:max150m

Speed:0-600m/min,max6rolls(30m/roll)/min

Voltage:220/380/415V,50Hz

Power:4kw
