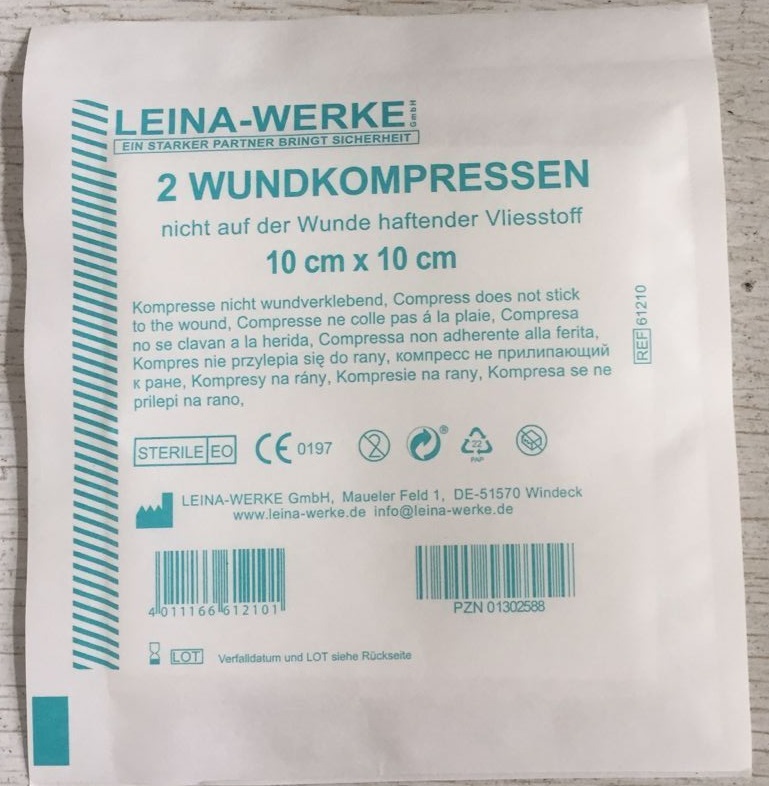

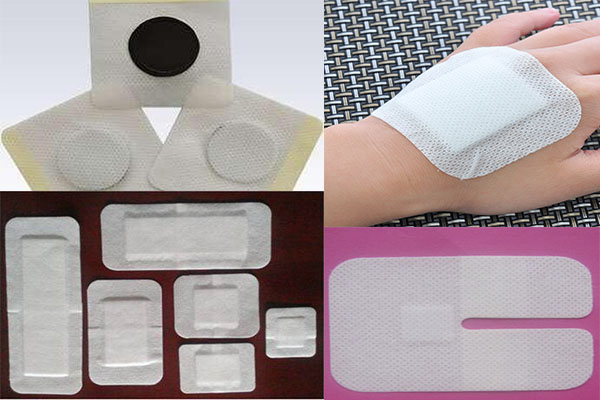

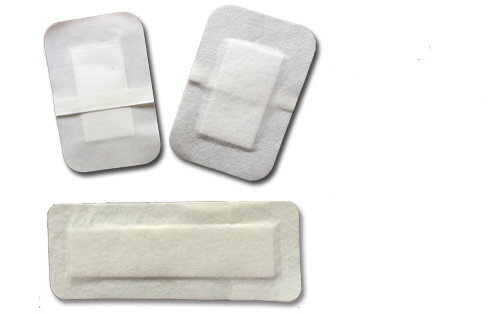

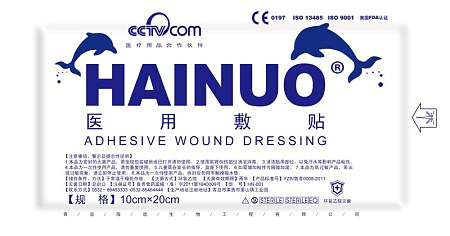

Automatic Medical Dressing Making Machine is designed and developed for specialization in the field of medical dressing industry for various purposes. Suitable for medical dressings, wound dressing paste, gauze, indwelling needle sticking operation, sewing kit and various sheet material packaging production, completed by servo motor drive, according to the shape of the product is equipped with automatic feeding device . Using the man-machine interface program PLC programmable controller in which operation methods are created.
The machine consists of servo traction, dural feeding, production lot batch number printing, reciprocating heat sealing, vertical and horizontal cutting and finished product conveying mechanism for all procedures in one step automatic operation. The machine has superior performance, convenient operation and maintenance.
Technical parameter:
Production Capacity 50-120 Package/point(According with the Material)
The max matgerial roller diameter φ400mm
Packing Film width 350mm
Packing Size L:70-390x 80-150x1-10mm LWH or buyer option
Pneumatic supply 0.3m³/min
Air pressure 0.5-0.7Mpa
Voltage AC220V 50&60Hz
Total Power Supply 7KW
Heating Power 3.2KW
Feeder Power 0.3KW
Weight 1000kg
Overall Dimension 5300*1100*1590mm(L*W*H)
Note: Different specs are acepted for customized model.
